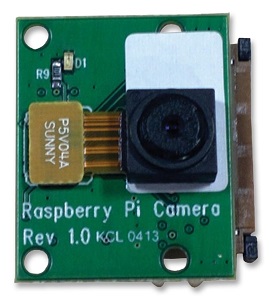

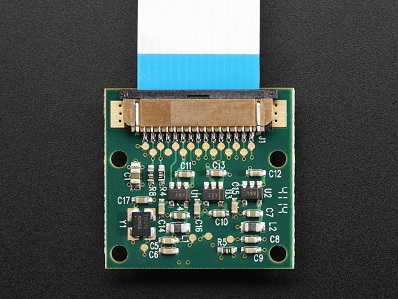

The Raspberry Pi Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras

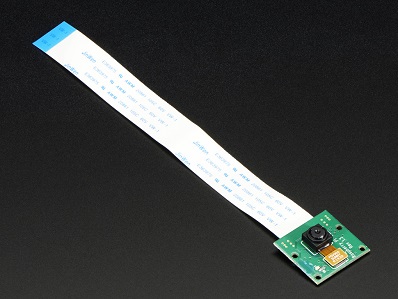

The board itself is tiny, at around 25mm x 20mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. It connects to Raspberry Pi by way of a short ribbon cable. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard.

• Fully compatible with both the Model A and Model B Raspberry Pi
• 5MP omnivision 5647 camera module
• Still picture resolution of 2592 x 1944
• Video supports 1080p at 30fps, 720p at 60fps and 640x480p 60/90 recording
• 15 pin MIPI camera serial interface plugs directly into the Raspberry Pi Board
• Size is 20mm x 25mm x 9mm
• Weight of 3g
• Fully compatible with the ModMyPi Raspberry Pi Case
